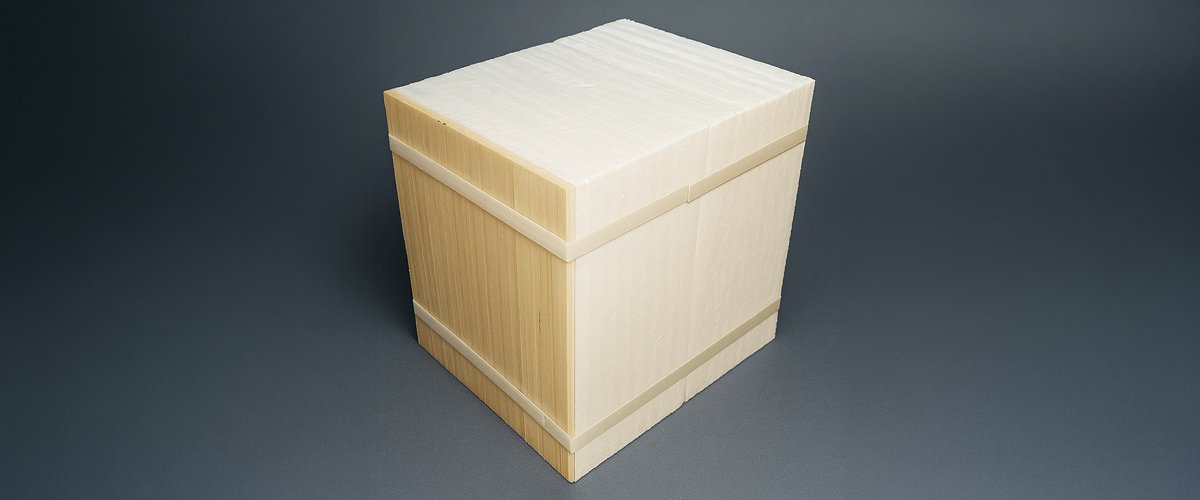

Ceramic Fiber Module

SD Tech's ceramic fiber modules are manufactured using a high-quality spinning process, compression-molded into multilayers of ultra-high-temperature refractory insulation blankets. Featuring excellent insulation and fire resistance, they simplify the wall structure of furnaces and high-temperature industrial facilities, reducing construction time and enhancing structural stability. Furthermore, the modules can be directly attached to metal plates using metal anchors, maximizing both fire resistance and insulation efficiency.

1. Characteristic
  • Easy and quick installation
  • Energy savings due to low heat loss
  • Sturdy and efficient fastening system
2. Use
  • Electric furnace doors, boilers, and duct linings
  • Electric furnace and furnace core insulation (as a brick replacement)
  • Ladle preheaters and ladle covers
  • Insulation for continuous and batch furnaces
3. Standard
  • A : 305 / 610
  • B : 305 / 610
  • C : 100 - 305
4. Specification
Division SD 1,100 SD 1,260 SD 1,360 SD 1,430 SD 1,500
Classification
temperature(℃)
1,100 1,260 1,360 1,430 1,500
Density(kg/m³) 16, 170, 190, 210
