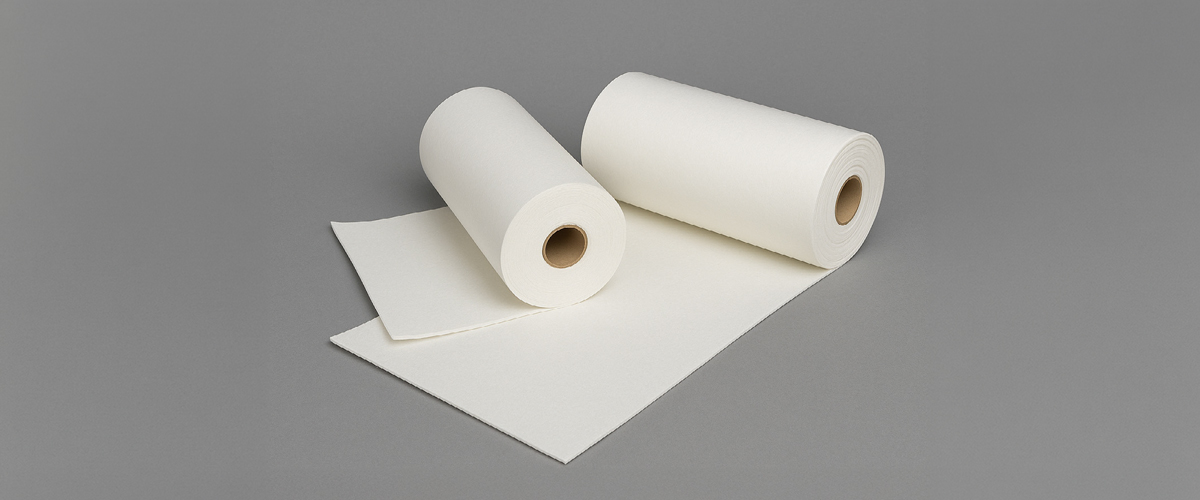

Ceramic Fiber Paper
SD Tech's ceramic fiber paper is made of high-purity alumina base material and can be used at temperatures from 1200°C (2192°F) to 1450°C (2600°F).
The manufacturing process has very low slag and organic binder content, resulting in low shrinkage and excellent strength even at high temperatures, along with lightweight and stable performance.
1. Characteristic
- Low thermal conductivity and heat storage
- Excellent thermal shock resistance and high-temperature stability
- High tensile strength
- Easy to cut and install
- Rich fiber composition
- Outstanding resistance to chemical corrosion
2. Use
- Insulation and insulation materials for glass melting furnaces
- Fiberglass paper and asbestos replacement materials
3. Standard
- Available width : 610mm / 1,220mm
- 1 × 610 × 40,000
- 2 × 610 × 20,000
- 3 × 610 × 15,000
- 4 × 610 × 10,000
- 5 × 610 × 10,000
- 6 × 610 × 10,000
4. Specification
| Division | SD 1,260 | SD 1,430 | |
|---|---|---|---|
| Classification temperature(℃) |
1,260 | 1,430 | |
| Density(kg/m³) | 15 | 15 | |
| Organic matter content(%) | 6 - 8 | 6 - 8 | |
| Tensile strength(kpa) | - | 1mm≥300, 2mm~6mm≥400 | |
| Permanent player contraction rate(%) (℃×24hr) |
≤3.5 (1,000℃) | ≤3.5 (1,200℃) | |
| Thermal conductivity (W/m·k) | 400℃ | - | 0.115 - 0.121 |
| 600℃ | - | 0.165 - 0.175 | |
